Blue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld Depth

  • 1
  • 2
  • 3

Brand Name : HanWei

Model Number : HW-B

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 Set

Price : USD / Set

Payment Terms : T/T

Supply Ability : 2000 Sets / year

Delivery Time : 10 working days

Packaging Details : Export Plywood Packing

Laser Power : 1000W

Welding Materials : Copper / Gold / Silver

Wavelength (nm) : 445nm

Operating Temperature (℃) : 5-40

Head Structure : T / F/ Y

Core Diameter : 200 μm / 0.22 NA

Cooling Method : Water Cooling

Gas Type : Co-axial / Side Gas

Contact Now

Blue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld Depth
The blue laser hybrid welding machine is mainly used for the joining and processing of high-reflectivity metal materials such as copper, gold and silver. Such materials tend to cause energy rebound under the action of conventional lasers, leading to unstable welding. The blue laser wavelength has stronger energy coupling ability on the metal surface, which can quickly complete heat input and make the welding process smoother and more reliable. Therefore, this equipment has obvious technical advantages in the fields of new energy conductive structures, precision precious metal components and high thermal conductivity material processing.
Blue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld Depth
Key Features
  1. High-Efficiency Welding Equipment for High-Reflectivity Precious Metals.
  2. Hybrid Output and Oscillation Control Expand Process Adaptability.
  3. Low Absorption Threshold Delivers Stable Processing Performance.
  4. Stable and Spatter-Free Welding Process.
  5. High Absorption Characteristics Achieve High-Quality Weld Seams and Ideal Weld Depth.

Under the action of blue laser and hybrid energy, the molten pool formation process is gentler and the liquid state change of metal is stable, which effectively avoids the common spatter phenomenon during welding. The area around the weld seam remains clean, which is conducive to subsequent assembly or encapsulation processes. The spatter-free feature not only improves the appearance quality, but also helps to enhance the overall production line efficiency.

Technical Parameters
Model HW-B
Laser Power 1000 W
Wavelength(um) 445 nm
Head Option Blue Laser Hybrid
Laser Core 50um / 100um
Head Weigh 4 Kg
Focuses Option
Laser Beam Stationary / Wobble
Cooling Method Water Cooling
Machine Size 1000*450*850mm
Power Range 10-100
Power Instability (%) ＜ 3
Core Diameter 200 μm / 0.22 NA
Applications

Due to the significantly improved absorption efficiency of blue laser in high-reflectivity materials, energy can enter the welding area more evenly, forming a continuous and dense weld seam structure. The weld seam has a flat formation and sufficient internal bonding, and at the same time, an ideal weld depth can be obtained to meet the application requirements of high-strength and high-reliability connections.

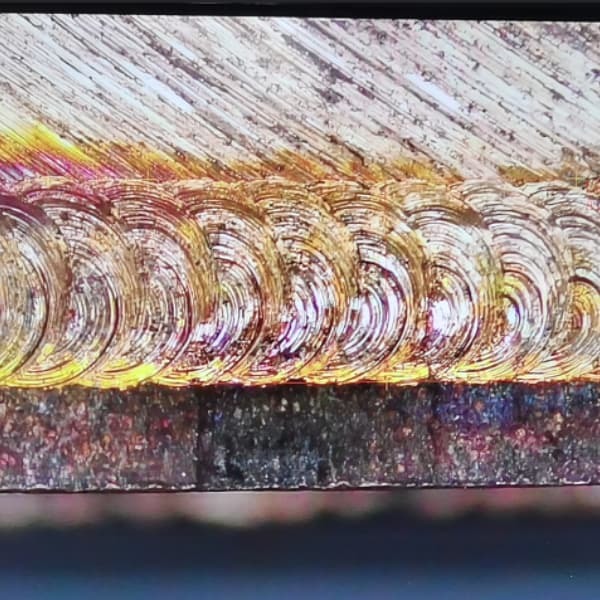

Welding Samples
Blue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld DepthBlue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld Depth

Shenzhen Hanwei Laser Enterprise
Shenzhen Hanwei Laser Equipment Co., Ltd. provides a comprehensive range of laser systems, encompassing both benchtop and portable configurations. These setups leverage cutting-edge fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser technologies—each elaborately designed to meet clients’ distinctive requirements.

The enterprise delivers customized solutions for specific application scenarios, accompanied by professional coaching and post-sales support, ensuring that customers maximize the operational efficacy of their laser equipment. With branch offices and affiliated entities spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a robust global presence, serving clients across the globe.

Laser welding stands as Hanwei Laser’s core strength. The company is committed to supplying innovative laser welding technologies to international laser integration firms, striving to provide high-grade welding solutions for all integrators. As one of the world’s relatively rare national high-tech specialized and sophisticated enterprises, it focuses on the entire industrial chain—including research and development, production, and distribution—of various welding lasers, laser control systems, laser optical systems, and laser welding techniques.
Blue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld DepthBlue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld DepthBlue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld DepthBlue Laser Hybrid Welder with High Absorption Characteristics for Ideal Weld Depth
